Derivative-Based Statistical Analysis
Derivative-Based Statistical Analysis | |||
| |||
| ProE Nominal and Tolerance | -0.00 ±0.10 |
| Solved Nominal | -0.00467425 |
| Standard Deviation | 0.0400617 |
| Worst Case Range : | Max = 0.245326 Min = -0.254674 |
| Name: | Dim./Tolerance: | Cp | Sensitivity | Variance/Contribution | ||
|---|---|---|---|---|---|---|
| 3605M-RC01:d6582 | 96.85 ±0.15 | 1.50 | -1 |
| ||
| 3602M-PC03:d14824 | 96.85 ±0.10 | 1.50 | 1 |
| ||
| 3602M-PC03:d1607 | 4.000 +0.150/0.000 | 1.50 | 0 |
| ||
| 3602M-RC03:d679 | 3.70 ±0.05 | 1.50 | 0 |
| ||
| 3605M-RC01:d1757 | 5.00 ±0.05 | 1.50 | 0 |
|

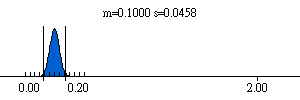

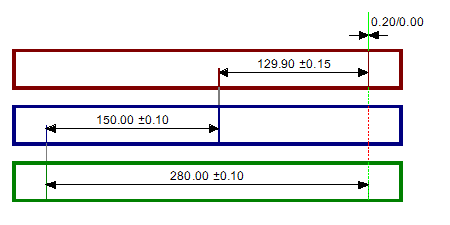

Dimension Loop Diagram | |||
 | |||
