Tolerance Analysis Report
Report Generated On 星期三 九月 24 2008 @ 02:26:23 pm
Analysis Report By: David
Company : LT
Derivative-Based Statistical Analysis |  |
Measure Details

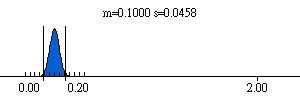

| ProE Nominal and Tolerance | 0.20/0.00 | | Solved Nominal | 0.1 | | Standard Deviation | 0.0458123 | | Worst Case Range : | Max = 0.45 Min = -0.25 |
Sensitivity and Statistical Contribution Details
| Name: | Dim./Tolerance: | Cp | Sensitivity | Variance/Contribution |
|---|
| TESTPART3:d2 | 129.90 ±0.15 | 1.50 | -1 | | | TESTPART2:d2 | 150.00 ±0.10 | 1.50 | -1 | | | TESTPART1:d20 | 280.00 ±0.10 | 1.50 | 1 | |

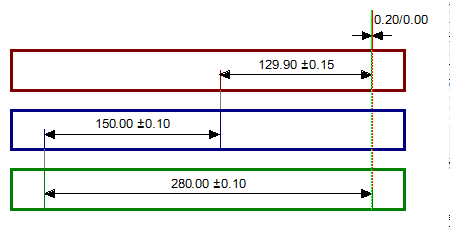

Dimension Loop Diagram |  |
|
