Tolerance Analysis Report
Report Generated On 星期四 九月 18 2008 @ 03:31:30 pm
Analysis Report By:
Company :
Derivative-Based Statistical Analysis | |||
 | |||
Measure Details
| ProE Nominal and Tolerance | 0.20/0.00 |
| Solved Nominal | -1 |

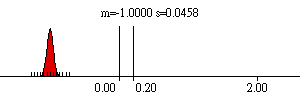

| Standard Deviation | 0.0458123 |
| Worst Case Range : | Max = -0.65 Min = -1.35 |
Sensitivity and Statistical Contribution Details
| Name: | Dim./Tolerance: | Cp | Sensitivity | Variance/Contribution | ||
|---|---|---|---|---|---|---|
| TESTPART3:d2 | 131.00 ±0.15 | 1.50 | -1 |
| ||
| TESTPART2:d2 | 150.00 ±0.10 | 1.50 | -1 |
| ||
| TESTPART1:d20 | 280.00 ±0.10 | 1.50 | 1 |
|

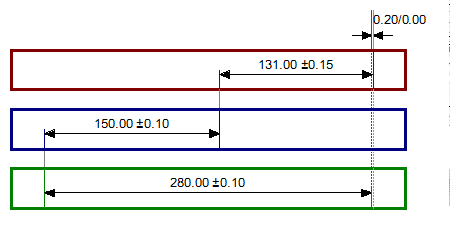

Dimension Loop Diagram | |||
 |
|||
