Circular External Nuts
Parts

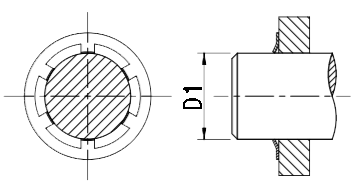

Application
Unit:mm
Size-No. Ring dimension Applicable shaft Thrust
load
kgf
d D t Nos.of
Teeth 		D1
Basic Tol. Basic Tol. Basic Tol.
CSTW- 2 1.9 ±0.05
 6 ±0.2 0.25 3 2 ＋0.03
－0		 6
2.4 2.2 ＋0.1
0		 6.4 0.25 3 2.4 ＋0.03 6
3 2.8 8 0.25 4 3 9
3.5 3.3 0
0. 1		 7.5 0.25 4 3.5 10
4 3.8 ＋0.1
0		 9 0.25 4 4 12
4.5 4.3 10 0.25 5 4.5 14
5 4.8 10 0.25 5 5 16
6 5.8 11 0.25 5 6 18
8 7.8 13 0.25 5 8 21
10 9.8 15.4 0.25 6 10 21
12 11.8 17.8 ±0.3 0.4 6 12 23
14 13.8 20.3 0.4 6 14 ±0.05 23
16 15.8 22.8 0.4 6

2

 23
18 17.8 25 0.4 8 18 25
19 18.7 ±0.15 25.4 0.4 6 19 25
20 19.8 ＋0.1
0		 28 0.4 8 20 25
22 21.7 ±0.15 28.5 0.4 6 22 25
●Material= Carbon spring steel. Hardness=HRC40~50. Finish=Black phosphate coating (ACP).
●Material=Stainless spring steel.
Note;

1.The data of thrust load shows the value when the nut is tested by the shaft made of cold rolled steel.
2.This ring can not use of hardened shaft.


Circular Internal Nuts

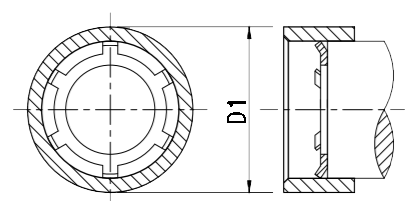

Parts Application

Unit:mm
Size-No. Ring dimension Applicable bore Thrust
load
kgf
D d t Nos.of
Teeth 		D1
Basic Tol. Basic Tol. Basic Tol.
CRTW- 6 6.2 0
－0.1		 2.2 ±0.2 0.25 6 6 ±0.03 20
8 8.2 3.6 0.25 6 8 20
10 10.2 5 0.25 6 10 18
12 12.2 6.6 0.25 6 12 15
14 14.2 8.2 0.25

6

 14 13
16 16.2 9.8 0.25 6 16 12
18 18.8 11 0.4 8 18 30
●Material= Carbon spring steel. Hardness=HRC40~50. Finish=Black phosphate coating (ACP).
Note; 1.The data of thrust load shows the value when the nut is tested by the bore made of cold rolled steel.
2.This ring can not use of hardened bore.
